Logstash作为Elasicsearch常用的实时数据采集引擎，可以采集来自不同数据源的数据，并对数据进行处理后输出到多种输出源

接上篇elasticsearch5.6 安装

下载、安装

[root@localhost ~]# cd /source
[root@localhost source]# wget https://artifacts.elastic.co/downloads/logstash/logstash-5.6.0.tar.gz
[root@localhost source]# tar xf logstash-5.6.0.tar.gz
[root@localhost source]# mv logstash-5.6.0 /elk/logstash
[root@localhost source]#cd /elk/logstash/config

#创建配置文件 这里以读取nginx日志为例
[root@localhost config]# vim nginx-access.conf
input {
    file {
        path => "/usr/local/nginx/logs/cloud.access.log"
        start_position => beginning
        ignore_older => 0
    }
}


filter {

    grok {
        match => { "message" => "%{COMBINEDAPACHELOG}"}
    remove_field => [ "message","path","host" ]
    }

}
output {
    elasticsearch {
       hosts => "127.0.0.1:9200"
        index => "nginx-%{+YYYY.MM.dd}"
    }

}

#启动logstash
[root@localhost config]# /elk/logstash/bin/logstash -f /elk/logstash/config/nginx-access.conf &
[1] 30030
2018-11-22 13:18:40,631 main ERROR Unable to locate appender "${sys:ls.log.format}_console" for logger config "root"
2018-11-22 13:18:40,632 main ERROR Unable to locate appender "${sys:ls.log.format}_rolling" for logger config "root"
2018-11-22 13:18:40,632 main ERROR Unable to locate appender "${sys:ls.log.format}_rolling_slowlog" for logger config "slowlog"
2018-11-22 13:18:40,633 main ERROR Unable to locate appender "${sys:ls.log.format}_console_slowlog" for logger config "slowlog"
Sending Logstash's logs to /elk/logstash/logs which is now configured via log4j2.properties
[2018-11-22T13:18:41,911][INFO ][logstash.modules.scaffold] Initializing module {:module_name=>"fb_apache", :directory=>"/elk/logstash/modules/fb_apache/configuration"}
[2018-11-22T13:18:41,915][INFO ][logstash.modules.scaffold] Initializing module {:module_name=>"netflow", :directory=>"/elk/logstash/modules/netflow/configuration"}
[2018-11-22T13:18:41,919][INFO ][logstash.setting.writabledirectory] Creating directory {:setting=>"path.queue", :path=>"/elk/logstash/data/queue"}
[2018-11-22T13:18:41,920][INFO ][logstash.setting.writabledirectory] Creating directory {:setting=>"path.dead_letter_queue", :path=>"/elk/logstash/data/dead_letter_queue"}
[2018-11-22T13:18:41,965][INFO ][logstash.agent           ] No persistent UUID file found. Generating new UUID {:uuid=>"0e15de90-b141-4923-a458-360603465bae", :path=>"/elk/logstash/data/uuid"}
[2018-11-22T13:18:42,645][INFO ][logstash.outputs.elasticsearch] Elasticsearch pool URLs updated {:changes=>{:removed=>[], :added=>[http://127.0.0.1:9200/]}}
[2018-11-22T13:18:42,647][INFO ][logstash.outputs.elasticsearch] Running health check to see if an Elasticsearch connection is working {:healthcheck_url=>http://127.0.0.1:9200/, :path=>"/"}
[2018-11-22T13:18:42,753][WARN ][logstash.outputs.elasticsearch] Restored connection to ES instance {:url=>"http://127.0.0.1:9200/"}
[2018-11-22T13:18:42,755][INFO ][logstash.outputs.elasticsearch] Using mapping template from {:path=>nil}
[2018-11-22T13:18:42,799][INFO ][logstash.outputs.elasticsearch] Attempting to install template {:manage_template=>{"template"=>"logstash-*", "version"=>50001, "settings"=>{"index.refresh_interval"=>"5s"}, "mappings"=>{"_default_"=>{"_all"=>{"enabled"=>true, "norms"=>false}, "dynamic_templates"=>[{"message_field"=>{"path_match"=>"message", "match_mapping_type"=>"string", "mapping"=>{"type"=>"text", "norms"=>false}}}, {"string_fields"=>{"match"=>"*", "match_mapping_type"=>"string", "mapping"=>{"type"=>"text", "norms"=>false, "fields"=>{"keyword"=>{"type"=>"keyword", "ignore_above"=>256}}}}}], "properties"=>{"@timestamp"=>{"type"=>"date", "include_in_all"=>false}, "@version"=>{"type"=>"keyword", "include_in_all"=>false}, "geoip"=>{"dynamic"=>true, "properties"=>{"ip"=>{"type"=>"ip"}, "location"=>{"type"=>"geo_point"}, "latitude"=>{"type"=>"half_float"}, "longitude"=>{"type"=>"half_float"}}}}}}}}
[2018-11-22T13:18:42,807][INFO ][logstash.outputs.elasticsearch] Installing elasticsearch template to _template/logstash
[2018-11-22T13:18:43,117][INFO ][logstash.outputs.elasticsearch] New Elasticsearch output {:class=>"LogStash::Outputs::ElasticSearch", :hosts=>["//127.0.0.1:9200"]}
[2018-11-22T13:18:43,228][INFO ][logstash.pipeline        ] Starting pipeline {"id"=>"main", "pipeline.workers"=>2, "pipeline.batch.size"=>125, "pipeline.batch.delay"=>5, "pipeline.max_inflight"=>250}
[2018-11-22T13:18:43,455][INFO ][logstash.pipeline        ] Pipeline main started
[2018-11-22T13:18:43,501][INFO ][logstash.agent           ] Successfully started Logstash API endpoint {:port=>9600}

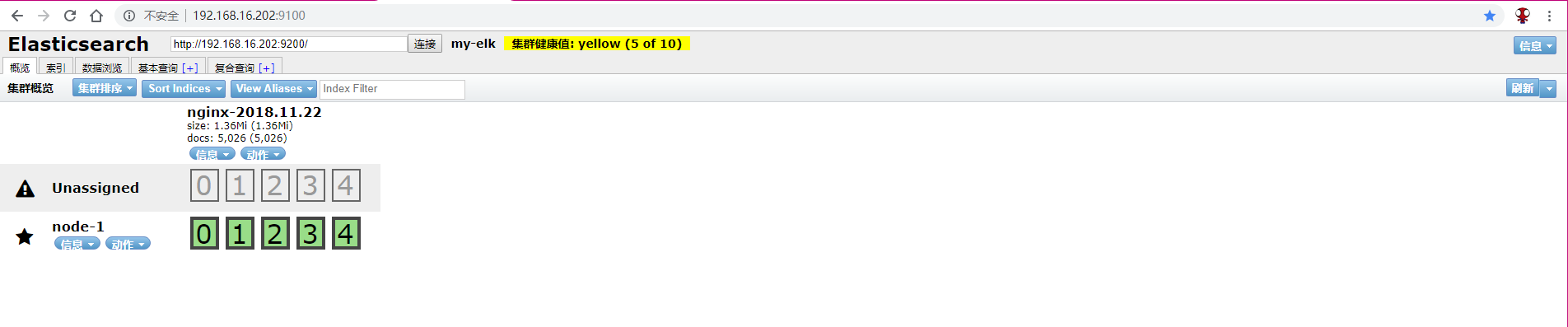

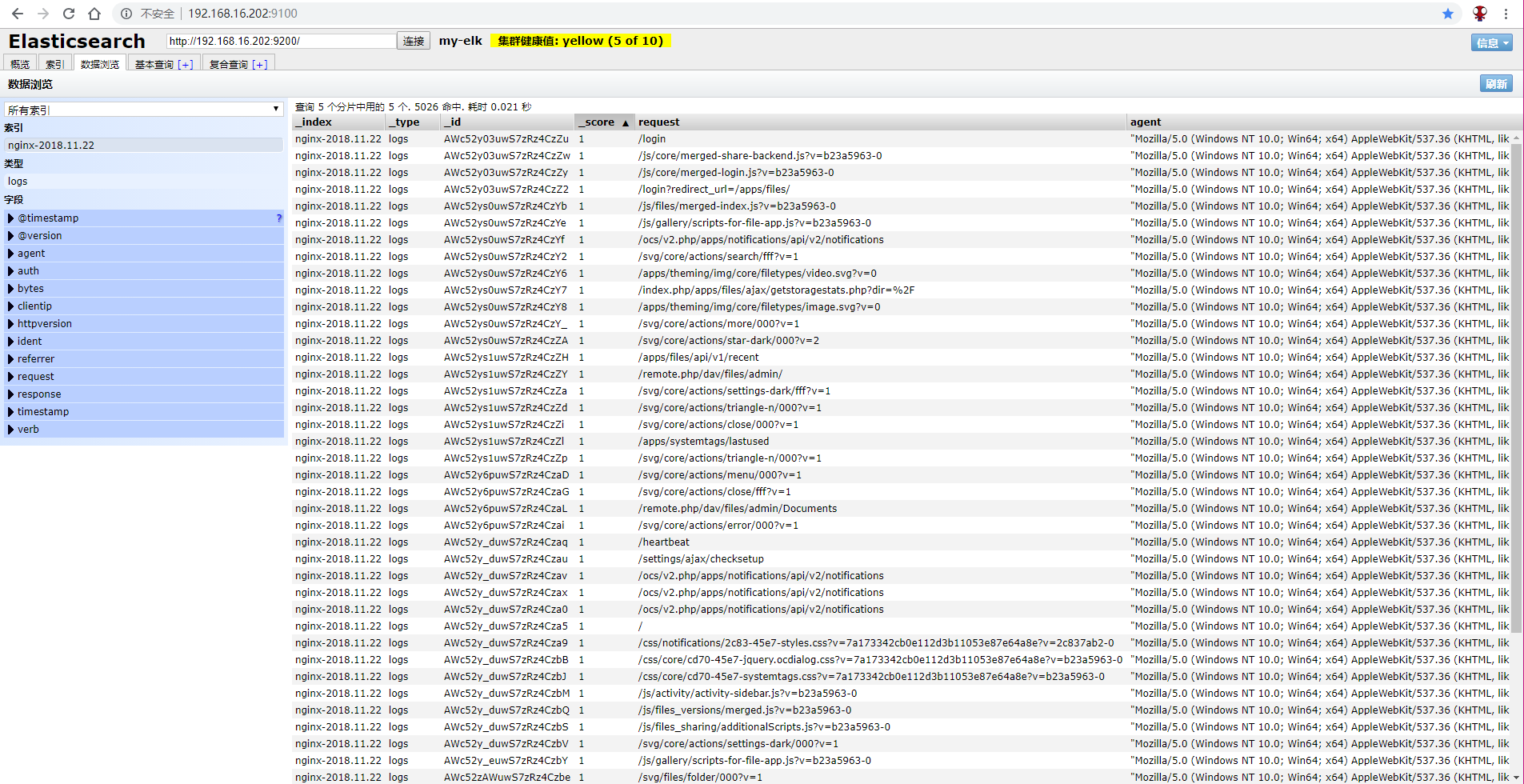

访问elasticsearch-head 看看是否有日志输入

关于集群健康值 yellow 这个警告

由于我们是单节点部署elasticsearch，而默认的分片副本数目配置为1，而相同的分片不能在一个节点上，
所以就存在副本分片指定不明确的问题，所以显示为yellow，我们可以通过在elasticsearch集群上添加一个节点来解决问题，
如果你不想这么做，你可以删除那些指定不明确的副本分片（当然这不是一个好办法）但是作为测试和解决办法还是可以尝试的
作者原文：https://blog.csdn.net/gamer_gyt/article/details/53230165

#删除副本分片 设置为0
[root@localhost ~]# curl -XPUT "http://localhost:9200/_settings" -d' {  "number_of_replicas" : 0 } '
{"acknowledged":true}[root@localhost ~]#

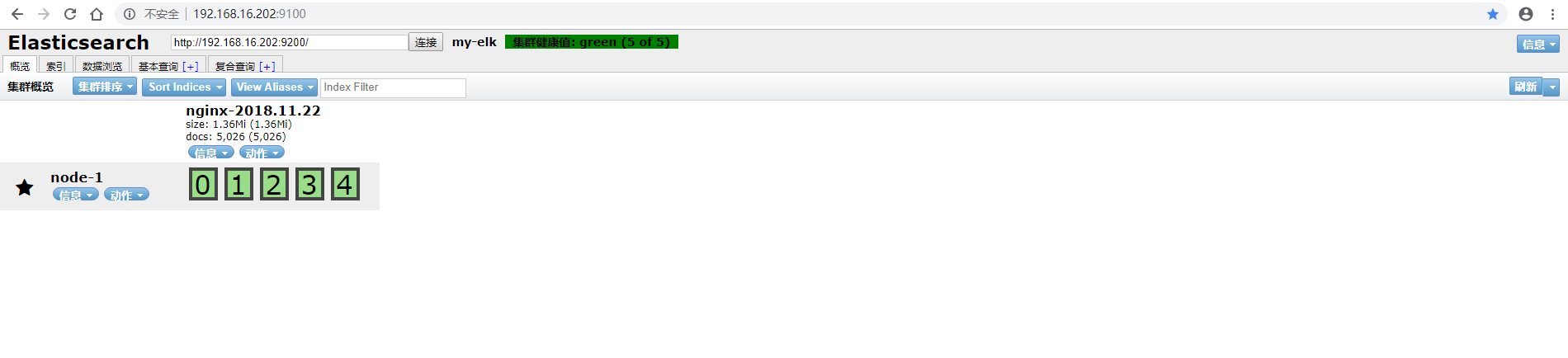

再次查看
